Revision as of 23:33, 5 June 2013
June 3, 2013
June 3, 2013 MicroTrac Frame File:Framewarehouse.skp
This is an updated model of the frame for the microtrac using the warehouse tubing found in the File:Warehouse.skp.
June 4, 2013
This is the microtrac frame with a powercube File:PTcube2.skp. Sorry its upside down, its just for size reference at this point. Also it has the Quick Connect Wheels and the wheels with tracks File:Micro fulltrack6 4.skp.
June 4, 2013 MicroTrac Design File:Microtrac preliminary.skp
June 5, 2013
- Corrected orientation of PowercubeFile:PTcube2.skp in design. Updated version: File:Microtrac preliminary.skp
- Altered Quick Connect Wheels and motors to fit the MicroTrac.

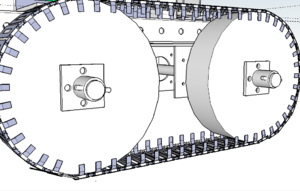

- Designed the hub attachment to fit wheel to shaft for both the 20" and 21" donuts at the shop.
- Began research on bulldozer blades in order to begin design process.
