=Notes= | |||
*Main hole is threaded all the way through, 6 mm diameter, 1 mm thread for standard 3D printer nozzles such as by [[E3D]]. | |||
*5 mm holes are not threaded | |||
*6061 aluminum | |||
Latest revision as of 17:07, 14 April 2020

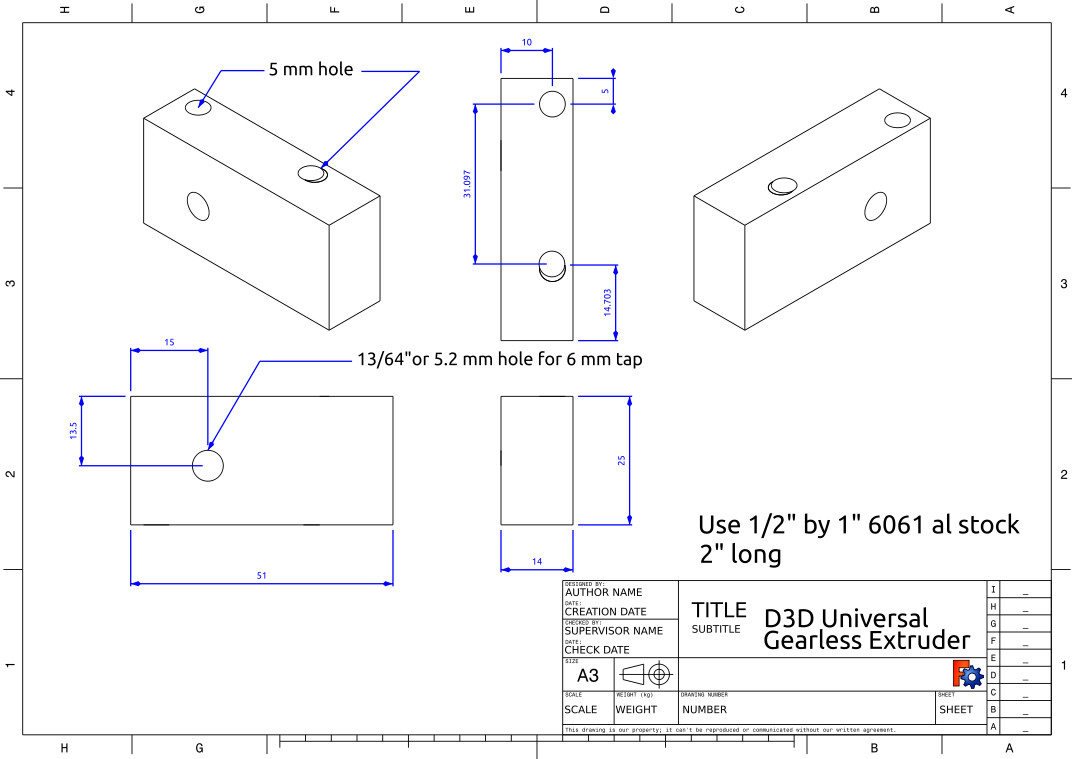

Notes
- Main hole is threaded all the way through, 6 mm diameter, 1 mm thread for standard 3D printer nozzles such as by E3D.
- 5 mm holes are not threaded
- 6061 aluminum
