Revision as of 17:57, 25 July 2017

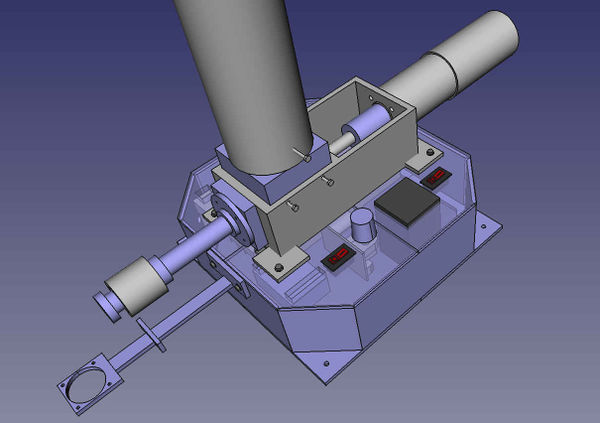

FreeCAD File
File:Filament Extruder Assembly.fcstd
Working Document
BOM
Extruder
Spooler
Master Index
Extruder Index
Spooler Index
Assembly Index
Part Library
Lyman Filament Extruder Part Library
About
Communications
Marcin,
Your work appears to be very interesting.
I don't visualize my being involved in your workshop as I am now 87 years old living in Enumclaw, Washington.
My latest Filament Extruder, Version 6 is the only extruder I am now supporting. It is my favorite extruder and all my filament is now produced with the three I have made. It extrudes 3mm (2.65mm) filament at about 1/2 lb/hour with the gear motor running at 25 rpm. The motor is rated for 33 rpm but under load it only goes about 25. . A faster gear motor with about 100 kg-cm of torque may give 1 lb/hr. I get a filament that varies not more than .05mm with the extruder wall mounted.
This extruder is posted on Thingiverse and is open source CC share alike. The posting includes a BOM. Also there is a video on YouTube.
Hugh Lyman
Technical
- Uses 173 kg-cm torque motor (150 lb in) , but a 10 lb-in stepper (2 nema 17, 80 oz-in motors) reduced 10x may be sufficient (so still can use small, cheap steppers, no more than $20 in stepper motor costs. Advantage is that we are introducing no new parts to the GVCS, as steppers are already used.
Video
Links
Hint: Build PDFs for Extruder v6 and Spooler v3 from Hugh Lyman is in the zipped folder, inside the Files folder
- Lyman Filament Extruder Part Library
- Thingiverse - v6 - http://www.thingiverse.com/thing:1199870. Download BOM + files (backup in case if Thingiverse goes south) - File:Lymanv6.zip
- Comments on Thingiverse provide some useful details.
- Spool winder v3, Jan 2016 - [1]. Download - File:Lymanspoolerv3.zip
