Wen Jun 26, 2013

I don't know if the dimensions in the 1st file are ok, I'm not familiar with LibreCAD yet.
Can be lower collar on 2nd file welded directly to the 24" round wheel plate, or i must add another round plate, with 4 holes to bolt it there?

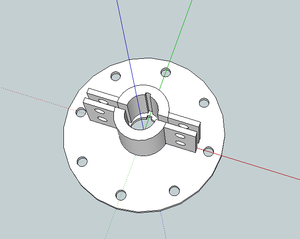

3 Inch Hub based on Justin dxf file

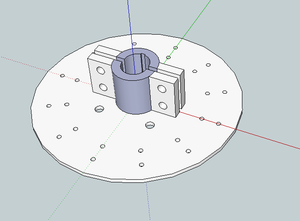

3 Inch Hub based on Monica Wheel

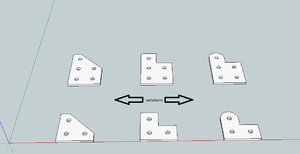

Created some new plates for cylinder mounting: File:New-plates-suggestion.skp

They would be used instead of rectangular 8x8 or 8x12 plates.
On red axis are variations of the same plate, with different fabrication process.
Do you find it usefull?

New Plates Suggestion

Sun Jun 23, 2013

Start QC of Backhoe Legs and Feet. Found technical problem with last version of File:Backhoe stabilizerarms1.skp:

- there is not enough place for moving legs up, they would be wider that LifeTrac in max upper position.

- do we need this module? Aditional stability can be achieved with laying down the LifeTrac arm. It is not enough?

Tibor's work sample - [1]. Got him do to Quality Control

Name: Tibor Soviš

Country: Slovakia

Timezone: GMT+0200 (CST+8)
