Revision as of 03:52, 21 November 2014
idea is to use loose powder contained in tubs with mesh walls.
design
ideas
- add a couple super capacitors to get some cold cranking amps?
- not sure if that would work but just an idea
- two tubs with grid on four sides of each or shared center.
- fins for surface area.
- cages that snap in to the bottom of a tub shared by two cages.
- might use a part of a sphere for the snap in idea.
- tub lid
- tub lid will need some sort of two pole terminal block
- from cages below
- to next tub or out for use
- might need some sort of cover for uninsulated wires from cage
- vent for gas?
- tub lid will need some sort of two pole terminal block
- need to make parametric for 10 tub battery
- maybe input number of rows and columns so it can be a single row or two side by side
sketches

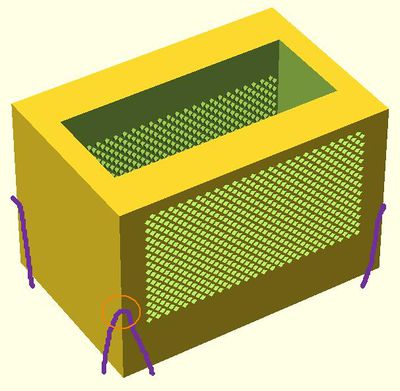

single cell separated by a grid.
File:BATTERY-idea-20141012.skp
scad work
User:Dorkmo/Ideas/Battery/SCAD
chemistry
http://en.wikipedia.org/wiki/Nickel%28II%29_hydroxide
calculations
- nickel carbonate
- 4.39 g/cm3
- nickel hydroxide Ni(OH)2
- 4.10 g/cm3
bom
hardware
nickel, aluminum, brass?
- all thread
- bolts
- washers
- nuts
